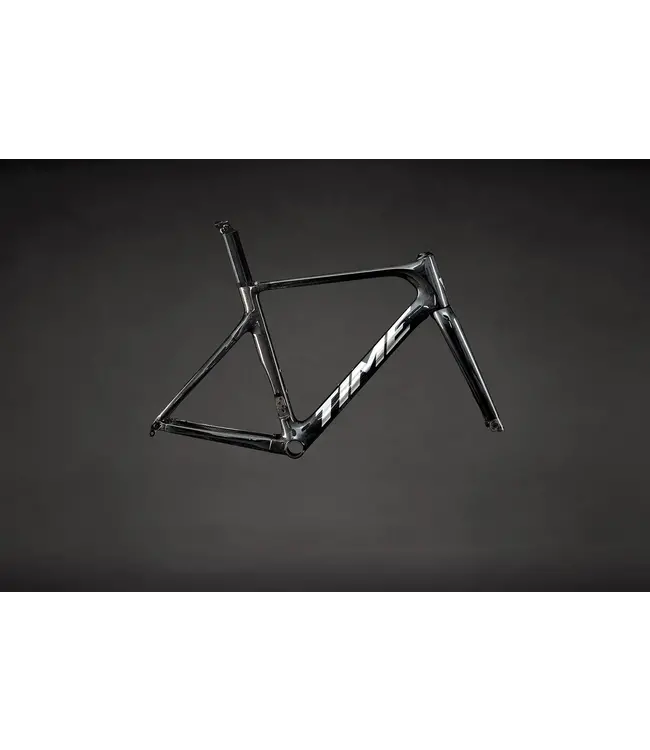

Time Scylon 2025 Frameset - Nude Carbon - Medium
Information
A Legend Reborn
There's glory to be found in the agony of a breakaway, and the sprint will come a few seconds sooner aboard this weapon. SCYLON features a revolutionary new carbon layup technology that blends high-strength and high-modulus carbon and balances performance with the responsiveness and stability needed for all-out efforts. Launched in 2014, SCYLON is our flagship racing platform. It balances aerodynamics, weight, stiffness, strength, and ride quality perfectly. It's the ultimate expression of TIME's world-renowned craftsmanship.
| SCYLON FRAME SPECIFICATIONS | |
|---|---|
| FRAME MATERIAL Gen 2 Braided Carbon M46J / T800 Carbon Fiber Layup |

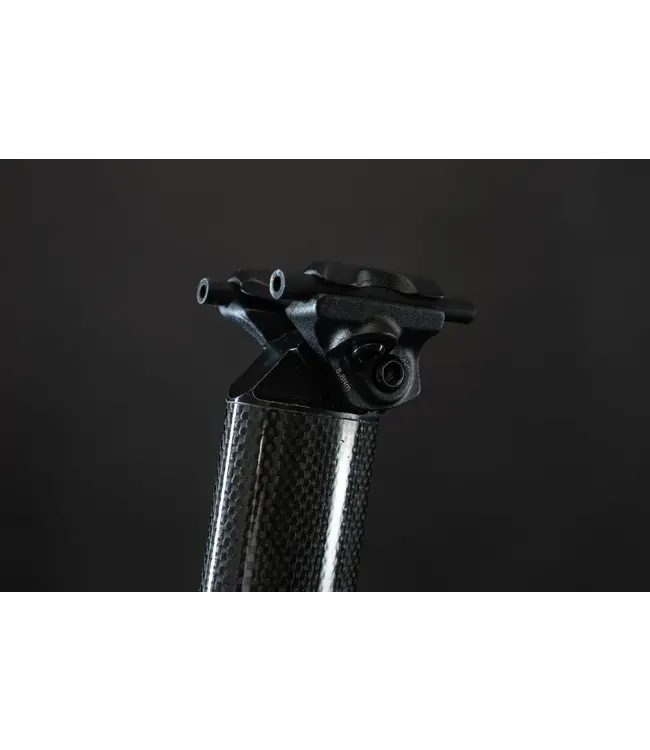

SEATPOST DIAMETER Proprietary SCYLON Aero Carbon, -20/+10mm SB |
| SIZES XXS, XS, SM, MD, LG, XL |
SEATPOST CLAMP Semi-Integrated TIME CNC Alloy |

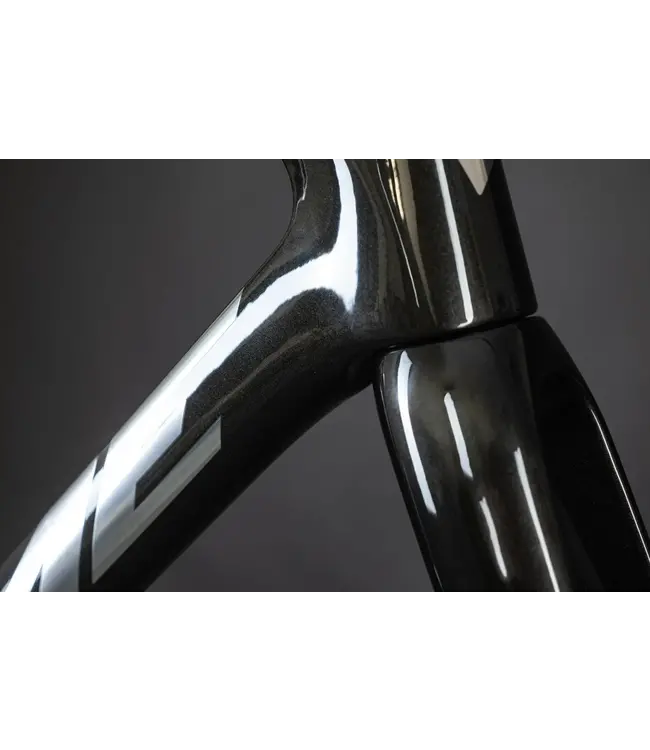

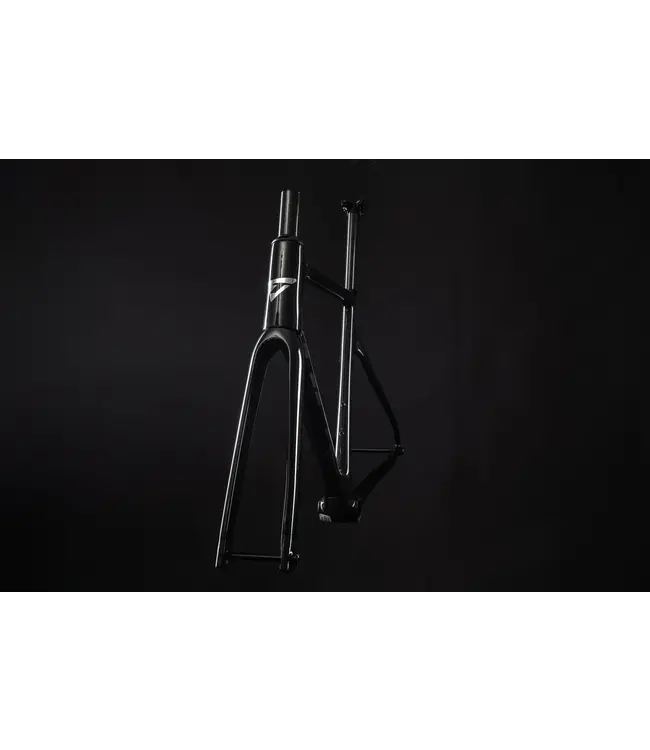

| FORK STEERER TUBE Kevlar Enhanced BCS Carbon Fiber - Tapered 1–1/8” to 1–1/2” |
SHIFTING Compatible with all Electronic Shifting Systems |
|
HEADSET BEARINGS FSA NO.69 SRS |
FRONT DERAILLEUR Standard Mount |
| WHEEL SIZE 700c |

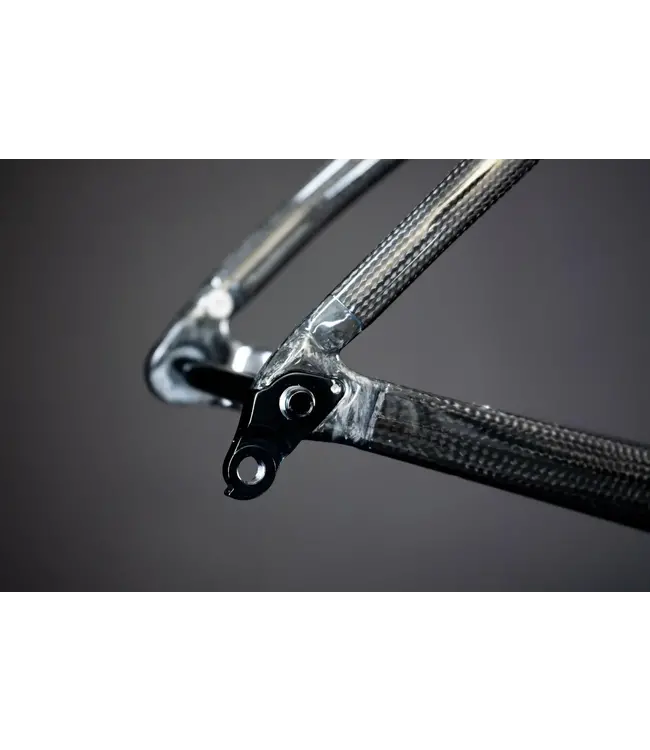

REAR DERAILLEUR Standard Mount |
| MAXIMUM TIRE WIDTH 700x32 |
BRAKE TYPE Front and Rear Flat Mount Disc |

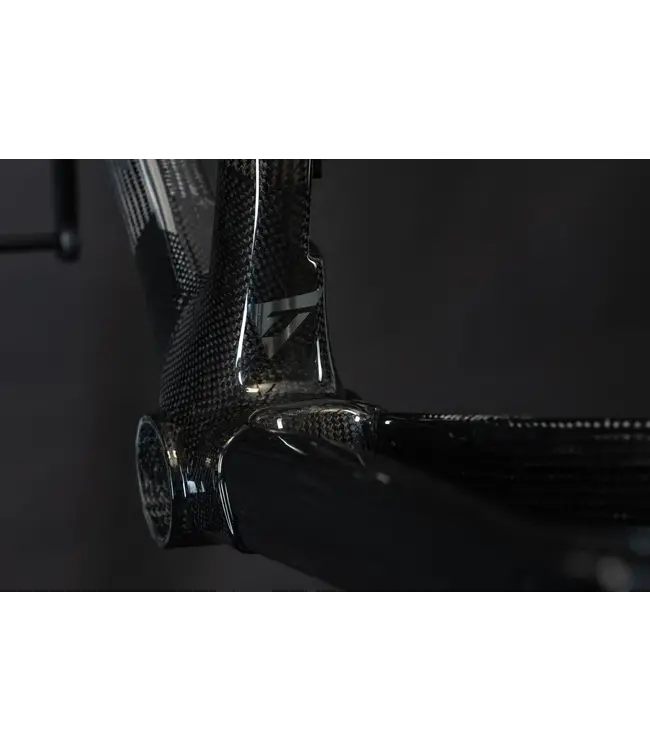

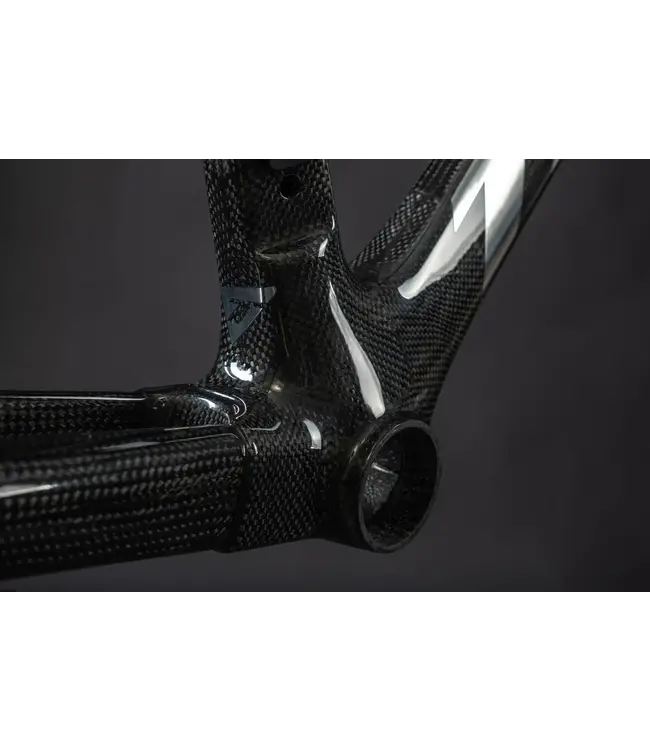

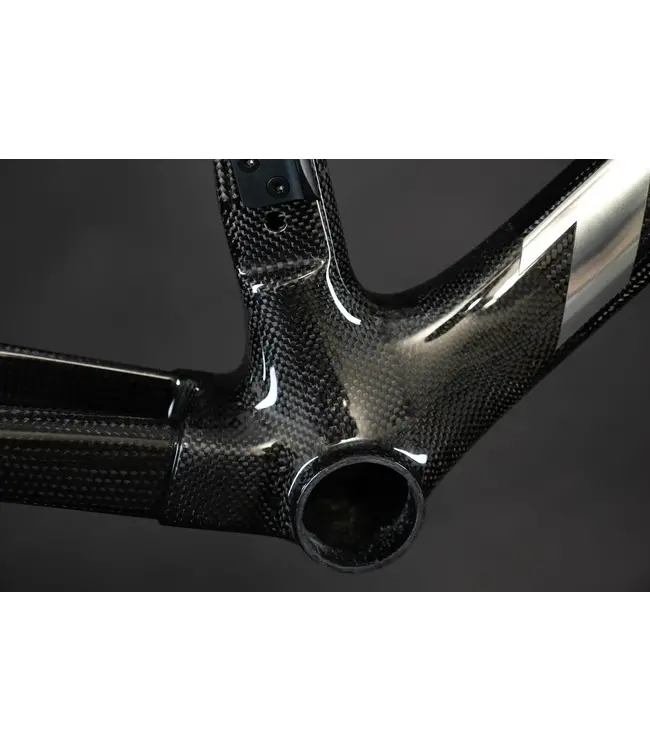

| BOTTOM BRACKET PF 386 EVO |
ROTOR SIZE 140/160mm with Adapter |

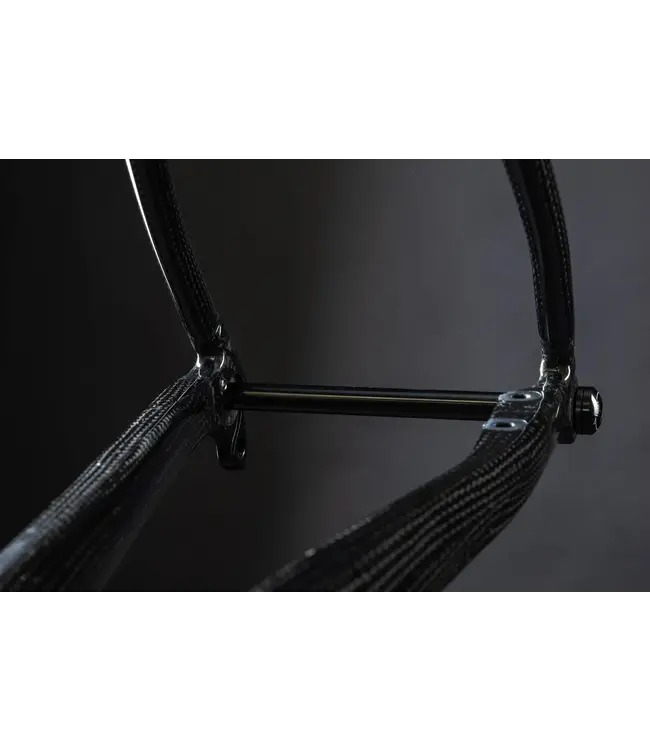

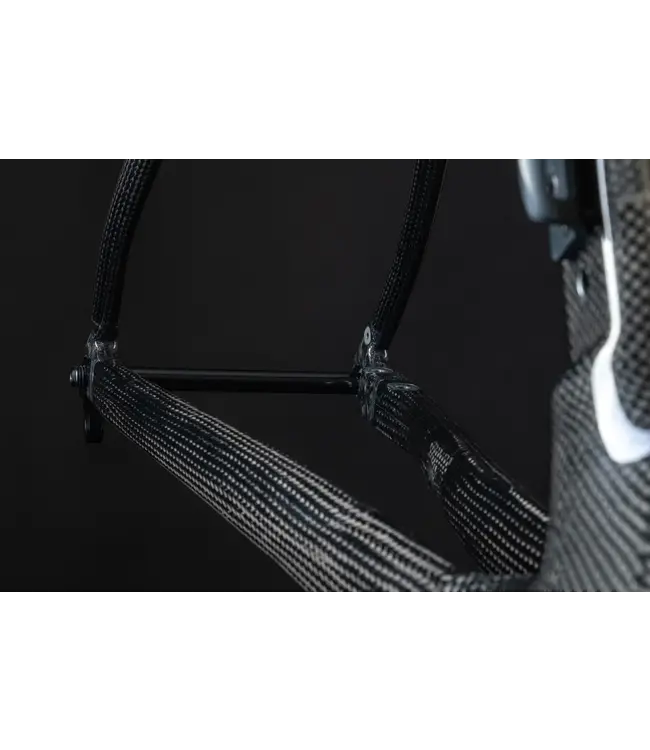

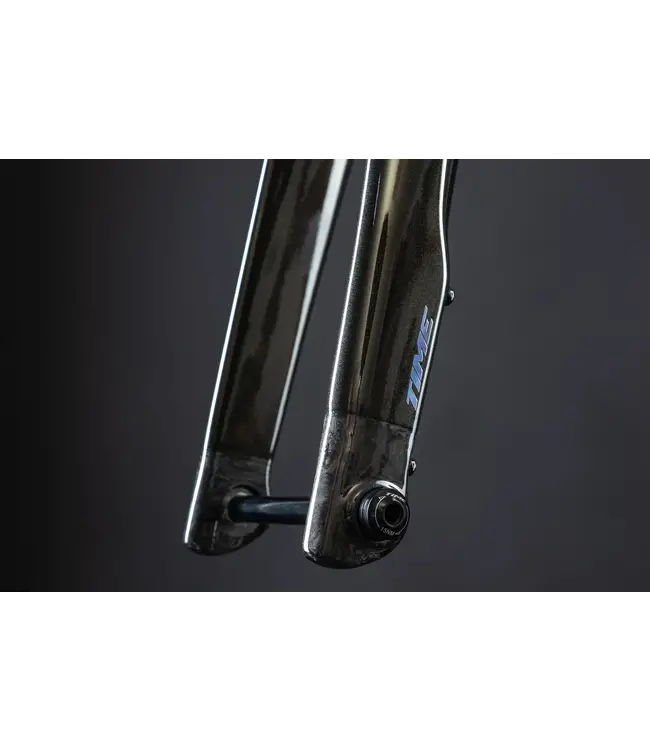

| THRU AXLES 12x120x1.5mm pitch Front, 12x159x1.5mm pitch Rear |
TORQUE SPECS Thru Axles: 10nm Seat Clamp: 4-5nm FD cover/plate: 3nm Disc caliper mounts: 6-7nm |
| WHAT'S INCLUDED | |
|---|---|
|
FSA Headset/SRS Topcap for Semi & Fully-Integrated Cockpits |
Front and Rear Thru Axles |
| Alloy Bottle Bolts | Semi-Integrated Seatpost Clamp |
| Scylon Aero Seatpost | Front and Rear Derailleur Hangers |
